NanoPi NEO Air Open Source Allwinner H3 Single Board Computer Onboard Quad-core Cortex-A7 1.2GHz CPU 512MB DDR3 RAM 8GB eMMC Compatible with 24pin Raspberry Pi GPIO Support FriendlyWrt Armbian
Product details
| Management number | 212231916 | Release Date | 2026/04/06 | List Price | US$15.60 | Model Number | 212231916 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

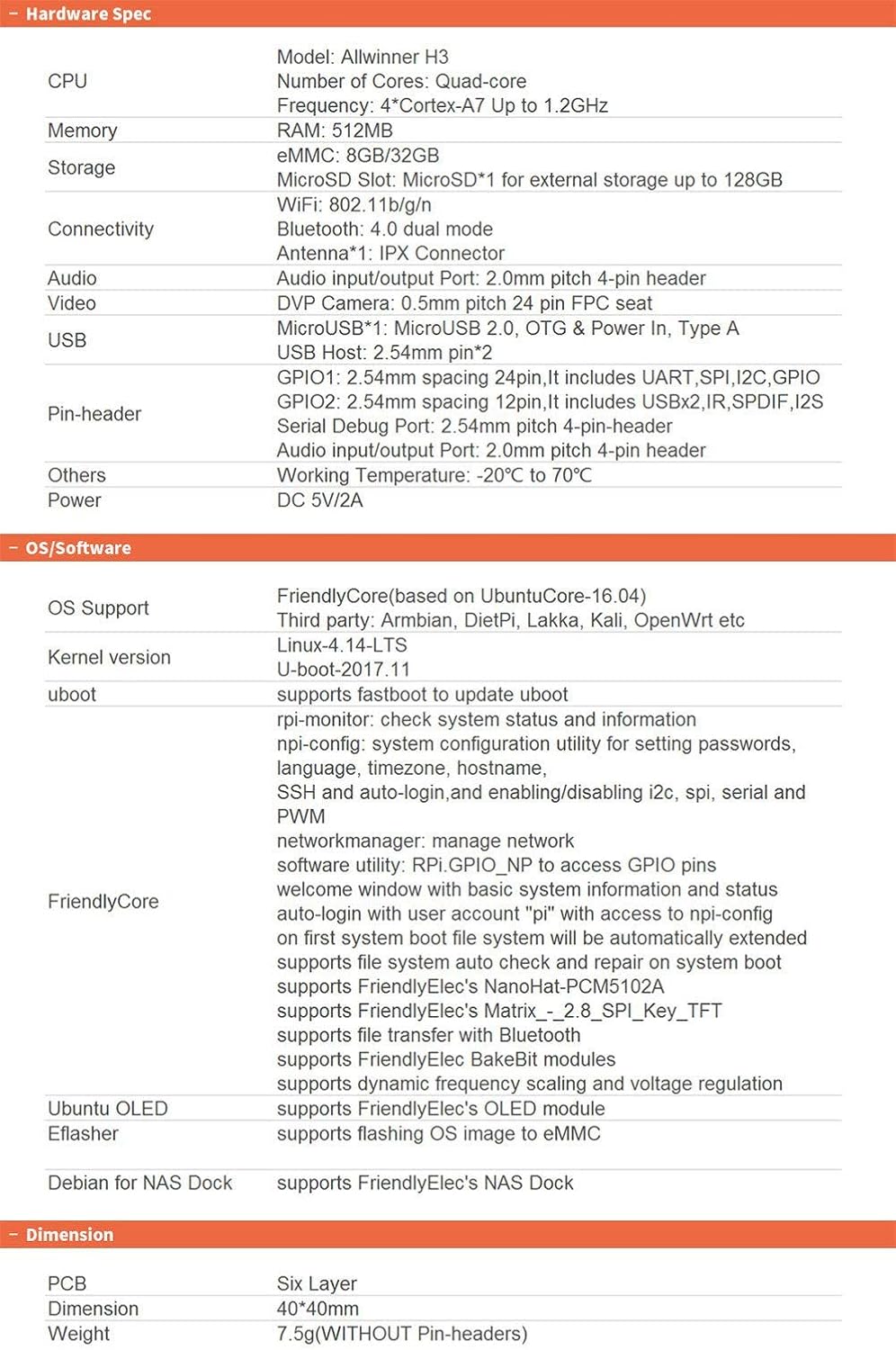

-Description-CPU: Allwinner H3 Quad-core（4*Cortex-A7 Up to 1.2GHz）Memory：512MB RAMStorage：8GB eMMCConnectivity：WiFi: 802.11b/g/n; Bluetooth: 4.0 dual-mode; Antenna*1: IPX ConnectorAudio input/output Port: 2.0mm pitch 4-pin headerVideo:DVP Camera: 0.5mm pitch 24 pin FPC seaUSB: MicroUSB*1: MicroUSB 2.0, OTG & Power In, Type A; USB Host: 2.54mm pin*2GPIO: 2.54mm pitch 36pin. It includes UART, SPI, I2C, IO etcWorking Temperature:-20℃ to 70℃Power: DC 5V/2APCB:Six LayerSize:40*40mmWeight:7.5g(WITHOUT Pin-headers)-OS/Software-FriendlyCore 16.04(based on UbuntuCore-16.04)FriendlyCore Focal (Base on Ubuntu 20.04)FriendlyWrt 19.07.1(32-bit) / LinuxArmbian/ DietPi/ Lakka/ Kali/ u-boot/ Ubuntu OLED / Eflasher-Package Includes-1x NanoPi NEO Air-LTS Development Board Combo-Technical Support-Wiki:“wiki.friendlyelec.com/wiki/index.php/NanoPi_NEO_Air”Github:"github.com/friendlyarm"Datesheet:"wiki.friendlyelec.com/wiki/images/4/4b/Allwinner_H3_Datasheet_V1.2.pdf"Qt Application: "112.124.9.243/qtsdk-friendlyelec/h3/"Note: LTS - long term support, We will not make any changes to this model and will provide support as long as possible
- [CPU Performance] The NanoPi NEO Air is equipped with Allwinner H3 open source single board computer which integrates ARM Mali400MP2 GPU ,it is Quad-core(Cortex-A76x4) 64-bit CPU with a main frequency of up to 1.2GHz;Supports 512M DDR3 SDRAM memory, standard 8GB eMMC
- [Wireless Connectivity] 2.4GHz WiFi ( 802.11b/g/n), Bluetooth 4.0; Antenna*1: IPX Connector；Integrated AP6212 WiFi Bluetooth module, support microSD card to start the running system, and with YUV422 parallel camera interface, can support up to 500W pixel CMOS camera sensor
- [OS Support] NanoPi NEO Air Single Board Computer Support Linux-4.14-LTS, Ubuntu OLED, Debian,U-boot-2017.11;Support FriendlyCore,FriendlyWrt,Armbian,DietPi,Lakka,Kali
- [Video Encoding] Supports H.264 1080p@30fps video encoding;H.265/ HEVC 4K@30fps video decoding;multi-format 1080p@60fps video decoding,including H.264BP/MP/HP, VP8, MPEGl/2, MPEG4SP/ASPGMC, H.263 including Sorenson Spark

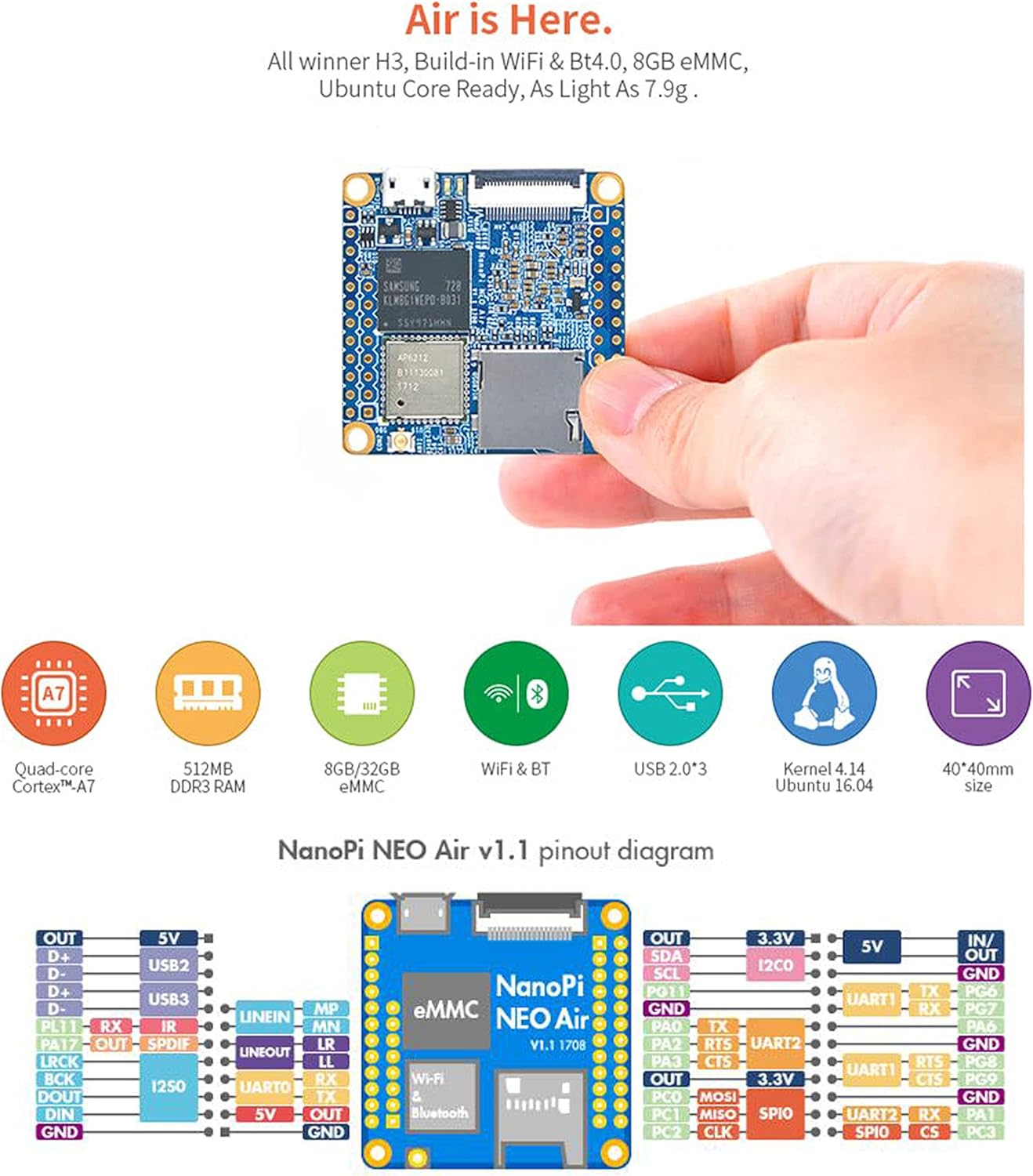

- [GPIO Pin-header] The pins are compatible with NanoPi NEO (wired network version, V 1.2), and compatible with 24pin Raspberry Pi GPIO.
- [Wiki] youyeetoo.com/blog/nanopi-neo-air-ys-0019--90. Any after-sales problems, please click “WayPonDEV ” and ask a question
| Brand | WayPonDEV |
|---|---|
| Color | Allwinner H3 Quad-core Cortex-A7 CPU up to 1.2GHz |
| RAM Type | DDR3 SDRAM |
| Model Name | NanoPi NEO Air Allwinner H3 Open Source Single Board Computer |
| Resolution | 1920 x 1080, 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Display Type | OLED |
| Manufacturer | WayPonDEV |
| Item Dimensions | 1.57 x 1.57 x 0.08 inches |
| Processor Brand | Allwinner |
| Processor Count | 4 |
| Processor Speed | 1.2 GHz |
| Total Usb Ports | 3 |
| CPU Model Number | Allwinner H3 Quad-core Cortex-A7 |
| Operating System | Armbian,DietPi,Lakka,Kali, FriendlyCore 16.04;FriendlyCore Focal, FriendlyWrt 19.07.1(32-bit) |
| Processor Series | Cortex A7 |
| Power Consumption | 10 Watts |
| Hardware Interface | Sim Card, USB Type C |
| Additional Features | Microphone |
| Wireless Technology | Bluetooth, Wi-Fi |
| Graphics Description | Dedicated |
| HumanInterface Input | Buttons |
| RAM Memory Installed | 512 MB |
| Wireless Compability | 802.11b, Bluetooth |
| Hard Disk Description | Embedded MultiMediaCard |
| RAM Memory Technology | DDR3 |
| Memory Slots Available | 1 |
| CPU Model Speed Maximum | 1.2 GHz |
| Connectivity Technology | Bluetooth, Wi-Fi |
| Memory Storage Capacity | 8 GB |
| Ram Memory Maximum Size | 512 MB |
| Specific Uses For Product | Everyday Use |
| Wireless Network Technology | Wi-Fi |
| Personal Computer Design Type | Mini PC |
